The Ericsson/CradlePoint R1900 router is a Ruggedized High Performance Mobile class router. It is designed to be mounted in a vehicle and to have an external antenna connected. It is designed to handle low and midband frequencies.

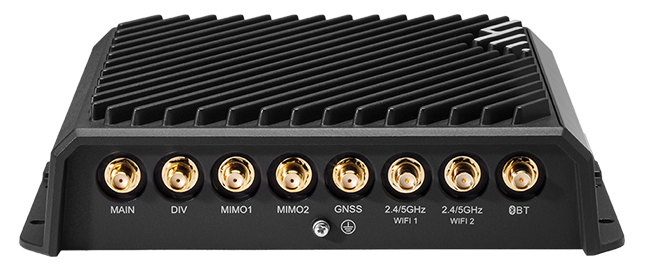

It is ideally suited for Mass Transit, Police, and Fire. The modem in the R1900 is capable of handling ESN, FirstNet Trusted, T-Mobile Connecting Heroes, and Verizon Frontline. The R1900 has a 5G embedded modem. It has 4 connectors for cellular connectivity, 2 connectors for WiFi, 1 connector for GPS and 1 connector for blue tooth. An external antenna needs 7 leads (if you want GPS and no bluetooth) or 8 leads (if you want GPS and bluetooth).

The other side has 4 RJ45 GbE ports for WAN/LAN (switchable) usage, 1 DB9 connector, one USB connector, 1 2x2 Molex power connector and 1 2x8 GPIO connector.

There is 1 embedded modem in the R1900. If you need a 2nd modem, the MB-RX30-MC dock can be added along with an MC400 modem. There is an additional dock to provide for POE connections. The MB-RX-POE switch adds 4 POE ports with a budget of 60 watts. Only 1 dock can be used at a time.

R1900 Product Brief
R1900 Quick Start Guide
R1900 Data Sheet
NetCloud Mobile Service features

All products ship with license terms depending on the SKU ordered.

r1900-front MB01-19005GB-GA
1-yr NetCloud Mobile Performance Essentials Plan and R1900 router with WiFi (5G modem, 4FF SIM optional but not included), no AC power supply or antennas, Global
$1,999.001999.00
173 MB01-19005GB-GA TCI Systems
r1900-front MB03-19005GB-GA
3-yr NetCloud Mobile Performance Essentials Plan and R1900 router with WiFi (5G modem, 4FF SIM optional but not included), no AC power supply or antennas, Global
$2,499.002499.00
174 MB03-19005GB-GA TCI Systems
r1900-front MB05-19005GB-GA
5-yr NetCloud Mobile Performance Essentials Plan and R1900 router with WiFi (5G modem, 4FF SIM optional but not included), no AC power supply or antennas, Global
$2,999.002999.00
175 MB05-19005GB-GA TCI Systems
r1900-front MBA1-19005GB-GA
1-yr NetCloud Mobile Performance Essentials Plan, Advanced Plan, and R1900 router with WiFi (5G modem, 4FF SIM optional but not included), no AC power supply or antennas, Global
$2,199.002199.00
161 MBA1-19005GB-GA TCI Systems
r1900-front MBA3-19005GB-GA
3-yr NetCloud Mobile Performance Essentials Plan, Advanced Plan, and R1900 router with WiFi (5G modem, 4FF SIM optional but not included), no AC power supply or antennas, Global
$3,099.003099.00
162 MBA3-19005GB-GA TCI Systems
r920-front MBA5-19005GB-GA
5-yr NetCloud Mobile Performance Essentials Plan, Advanced Plan, and R1900 router with WiFi (5G modem, 4FF SIM optional but not included), no AC power supply or antennas, Global
$3,999.003999.00
163 MBA5-19005GB-GA TCI Systems
ma-rx30-mc MB-RX30-MC
R1900 Managed Accessory - Modular Modem and Switch (modem sold separately)
$249.99249.99
298 MB-RX30-MC TCI Systems
ma-rx30-poe MB-RX30-POE
R1900 Managed Accessory - PoE Switch
$299.99299.99
297 MB-RX30-POE TCI Systems
MC400-1200M-B-front2 MA-MC400-1200M-B
LTE Advanced Pro (1200Mbps) modem upgrade for Mobile. Includes IBR1700 & COR Dock doors, no antennas
$708.00708.00
347 MA-MC400-1200M-B TCI Systems
mc400-5gb-front-600x320-1 MB-MC400-5GB
5G Modem (requires 4FF SIM) upgrade for R1900+RX30-MC, R920+RX20-MC, or IBR1700 Mobile Routers with doors
$999.99999.99
349 MB-MC400-5GB TCI Systems
170594-002
SIM, Verizon ruggedized 4FF only, for Verizon Retail or VPP accounts
$12.0012.00
351 170594-002 TCI Systems
170623-001-Line-Cord-for-North-America-C8-product-1 170623-001
Line Cord, 125V C7 1.8M (North America Type A); Used with 170869-000
$12.9912.99
371 170623-001 TCI Systems
170671-001-line-cord-us-600x320-1 170671-001
Line Cord, 125V C13 1.8M (North America Type B); used with CR4250, 170671-000, 170751-000, 170870-000, 170785-000
$12.9912.99
374 170671-001 TCI Systems
170716-001 170716-001
Power Supply, 12V Small 2x2 1.5M (North America Type A); Used with IBR1700, IBR900, IBR600C/IBR650C, IBR200, E100, E300, R500-PLTE, R920, S700, S750
$24.9924.99
269 170716-001 TCI Systems
170717-000 170717-000
Power Supply, 12V Small 2x2 1.5M (North America-United Kingdom-Europe-Australia Types A-G-C-I); Used with IBR1700, IBR900, IBR600C/IBR650C, IBR200,E100, E300, R500-PLTE, S700, S750, R920
$24.9924.99
266 170717-000 TCI Systems
170751-000-Power-Supply-54V-3.3A-120W-PoE-budget-2-2-large-product-1 170751-000
Power Supply, 54V, Large 2x2, 2M, No C13 Line Cord; used with E3000
$199.99199.99
369 170751-000 TCI Systems
170758-000-OBDIIadapter 170758-000
DAT-Int Cable, OBDII-M/F W/ DB9-DB9 Black 4.6M; Used with IBR1700, IBR900, R1900
$349.00349.00
330 170758-000 TCI Systems
170858-000-large-product-image-2 170858-000
GPIO Cable, Small 2x3MPP Black 3M 18AWG; Used with RX30-POE, RX30-MC
$39.9939.99
376 170858-000 TCI Systems
170864-000 170864-000
GPIO Cable, Small 2x2MPP Black 3M 20AWG; Used with R1900, S700
$19.9919.99
268 170864-000 TCI Systems
170869-000 170869-000
Power Supply, 12V, Small 2x2 C8 (C7 line cord not include), -30C to 70C; Used with R1900, IBR1700, IBR900, R500-PLTE
$44.9944.99
265 170869-000 TCI Systems
170870-000-power-supply-600x320-2 170870-000
Power Supply, 24V, Small 2x3, C14, 1.8M (C13 line cord not included), -30C to 70C; Used with RX30-POE, RX30-MC
$119.99119.99
368 170870-000 TCI Systems
170900-001-captive-modem-img-1800w 170900-001
LTE Captive Modem Accessory, Indoor, CBA550-150M-D (150Mbps modem), Americas; Used with CR4250-PoE, R1900, IBR1700, E300, and E3000
$339.00339.00
333 170900-001 TCI Systems
170900-001-captive-modem-img-1800w 170900-005
LTE Captive Modem Accessory, Indoor, L950-C7A (300Mbps modem), Americas; Used with CR4250-PoE, R1900, R920, IBR1700, E300, and E3000
$619.00619.00
334 170900-005 TCI Systems
captive-modem-w2005-581x217-1 170900-009
5G Captive Modem Accessory, Outdoor, W2005-5GB (4.1Gbps modem), AP; Used with CR4250-PoE, R1900, IBR1700, E300, and E3000
$1,599.001599.00
337 170900-009 TCI Systems
170900-014 170900-014
5G Captive Modem and WiFi Accessory, Outdoor, R2105-5GB (4.1Gbps modem), Global; Used with R1900
$2,153.992153.99
321 170900-014 TCI Systems
170900-015 170900-015
5G Captive Modem Accessory, Outdoor, R2155-5GB (4.1Gbps modem), Global; Used with R1900, R920, IBR1700, E300, E3000
$1,953.991953.99
322 170900-015 TCI Systems
captive-modem-w2005-581x217-1 170900-016
5G Captive Modem Accessory, Outdoor, W1855-5GC (3.4Gbps modem), North America; Used with CR4250-PoE, R1900, IBR1700, E300, and E3000
$1,799.001799.00
335 170900-016 TCI Systems
captive-modem-w1850-581x217-1 170900-017
5G Captive Modem Accessory, Indoor, W1850-5GC (3.4Gbps modem), Americas; Used with CR4250-PoE, R1900, IBR1700, E300, and E3000
$1,349.001349.00
336 170900-017 TCI Systems
captive-modem-w1850-581x217-1 170900-020
5G Captive Modem Accessory, Indoor, W1850-5GC (3.4Gbps modem), Global; Used with CR4250-PoE, R1900, IBR1700, E300, and E3000
$1,349.001349.00
331 170900-020 TCI Systems
SEC-0001-NCIWF
1-yr NetCloud Security IPS and Web Filter Add-on; Requires corresponding NetCloud Essentials; supports E3XX, E3XXX,R19XX, R210X and IBR17XX series
$125.00125.00
388 SEC-0001-NCIWF TCI Systems
SEC-0001-NCIWF-R
1-yr Renewal NetCloud Security IPS and Web Filter Add-on; Requires corresponding NetCloud Essentials; supports E3XX, E3XXX,R19XX, R210X and IBR17XX series
$125.00125.00
391 SEC-0001-NCIWF-R TCI Systems
SEC-0003-NCIWF
3-yr NetCloud Security IPS and Web Filter Add-on; Requires corresponding NetCloud Essentials; supports E3XX, E3XXX,R19XX, R210X and IBR17XX series
$375.00375.00
389 SEC-0003-NCIWF TCI Systems
SEC-0003-NCIWF-R
3-yr Renewal NetCloud Security IPS and Web Filter Add-on; Requires corresponding NetCloud Essentials; supports E3XX, E3XXX,R19XX, R210X and IBR17XX series
$375.00375.00
392 SEC-0003-NCIWF-R TCI Systems
SEC-0005-NCIWF
5-yr NetCloud Security IPS and Web Filter Add-on; Requires corresponding NetCloud Essentials; supports E3XX, E3XXX,R19XX, R210X and IBR17XX series
$625.00625.00
390 SEC-0005-NCIWF TCI Systems
SEC-0005-NCIWF-R
5-yr Renewal NetCloud Security IPS and Web Filter Add-on; Requires corresponding NetCloud Essentials; supports E3XX, E3XXX,R19XX, R210X and IBR17XX series
$625.00625.00
393 SEC-0005-NCIWF-R TCI Systems

There are no licenses or renewals available for purchase on our site as these transactions require specific information about your account. Please contact us via Email or Call 718-888-8898. We will make sure your licenses and renewals orders are placed seamlessly with Ericsson/CradlePoint. Please remember that Ericsson/CradlePoint may add a Reinstatement fee of 10% for any expired licenses.

All sales are final. Ericsson/CradlePoint controls the return policy. Please ensure that you are ordering the correct product for your needs. If you are unsure of whether you are ordering the correct product, please contact us via email at sales@tcisystems.com or Call 718-888-8898. We are more than happy to discuss your project and to ensure that the items you have selected will satisfy your requirements.
