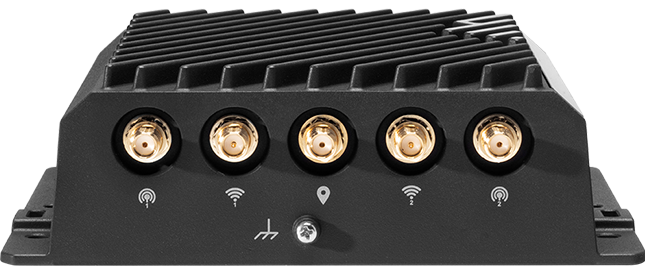

The R920 router is the entry level Vehicle Router in the Ericcson CradlePoint Wireless Mobile product line. It replaces the discontinued IBR900 600M router. The IBR900 1200M router is also discontinued at this point in time.

The R920 is available with an embedded Cat 7 Modem which provides 300/150 Mbs download/upload. The Cat 7 is LTE only. 5G is available with the purchase of the RX20 managed appliance and the MB-MC400-5GB modem.

One of the many enhancements of the R920 is its extensibility using containers. With containers, lightweight applications can run onsite near IoT devices to reduce latency and improve edge compute performance.

Most of the older LTE products were limited to an upload speed of 50 Mbs. However, when running containers, it is possible that collected data is being massaged and a subset of the data is then uploaded to a server. This is more likely to occur in the IOT version of the R920.

There is an additional accessory which is available on the R920. It is the Extensibility Cable, part # 170873-000. The extensibility cable is an interface between a USB to RS232 cable which gets locked into the R920 device. This provides OBD-II support (R920 with OBD-II cable).

R920 Product Brief
R920 Quick Start Guide
R920 Data Sheet
NetCloud Ruggedized IOT Service features

All products ship with license terms depending on the SKU ordered.

r920-front TC03-0920-C7A-NN
3-yr NetCloud Ruggedized IoT Essentials Plan and R920 router with WiFi (300Mbps modem), with AC power supply and antennas, North America
$1,163.001163.00
339 TC03-0920-C7A-NN TCI Systems
r920-front TC05-0920-C7A-NN
5-yr NetCloud Ruggedized IoT Essentials Plan and R920 router with WiFi (300Mbps modem), with AC power supply and antennas, North America
$1,375.001375.00
340 TC05-0920-C7A-NN TCI Systems
r920-front TCA3-0920-C7A-NN
3-yr NetCloud Ruggedized IoT Essentials Plan, Advanced Plan, and R920 router with WiFi (300Mbps modem), with AC power supply and antennas, North America
$1,481.001481.00
212 TCA3-0920-C7A-NN TCI Systems
r920-front TCA5-0920-C7A-NN
5-yr NetCloud Ruggedized IoT Essentials Plan, Advanced Plan, and R920 router with WiFi (300Mbps modem), with AC power supply and antennas, North America
$1,906.001906.00
213 TCA5-0920-C7A-NN TCI Systems
MA-RX20-MC MA-RX20-MC
R920 Managed Accessory - Modular Modem, GPIO, and Serial (modem sold separately)
$229.00229.00
262 MA-RX20-MC TCI Systems
MC400-1200M-B-front2 MA-MC400-1200M-B
LTE Advanced Pro (1200Mbps) modem upgrade for Mobile. Includes IBR1700 & COR Dock doors, no antennas
$708.00708.00
347 MA-MC400-1200M-B TCI Systems
mc400-5gb-front-600x320-1 MB-MC400-5GB
5G Modem (requires 4FF SIM) upgrade for R1900+RX30-MC, R920+RX20-MC, or IBR1700 Mobile Routers with doors
$999.99999.99
349 MB-MC400-5GB TCI Systems
170594-002
SIM, Verizon ruggedized 4FF only, for Verizon Retail or VPP accounts
$12.0012.00
351 170594-002 TCI Systems
170623-001-Line-Cord-for-North-America-C8-product-1 170623-001
Line Cord, 125V C7 1.8M (North America Type A); Used with 170869-000
$12.9912.99
371 170623-001 TCI Systems
170635-000 170635-000
Vehicle Auxiliary Power Adapter Cable, 12V, 2X2, 2M
$24.9924.99
267 170635-000 TCI Systems
170716-001 170716-001
Power Supply, 12V Small 2x2 1.5M (North America Type A); Used with IBR1700, IBR900, IBR600C/IBR650C, IBR200, E100, E300, R500-PLTE, R920, S700, S750
$24.9924.99
269 170716-001 TCI Systems
170717-000 170717-000
Power Supply, 12V Small 2x2 1.5M (North America-United Kingdom-Europe-Australia Types A-G-C-I); Used with IBR1700, IBR900, IBR600C/IBR650C, IBR200,E100, E300, R500-PLTE, S700, S750, R920
$24.9924.99
266 170717-000 TCI Systems
170801-000 170801-000
Cellular Antenna, Charcoal, 600MHz - 6GHz, SMA, 180mm, Used with E100, E300, E3000, MC400, 1200M-B modems, S700 / S750, R920
$17.9917.99
271 170801-000 TCI Systems
170836-000 170836-000
Wi-Fi Antenna, Charcoal, Dual-band 2.4/5GHz, RPSMA, 194mm, S700,R920
$14.9914.99
272 170836-000 TCI Systems
170864-000 170864-000
GPIO Cable, Small 2x2MPP Black 3M 20AWG; Used with R1900, S700
$19.9919.99
268 170864-000 TCI Systems
170869-000 170869-000
Power Supply, 12V, Small 2x2 C8 (C7 line cord not include), -30C to 70C; Used with R1900, IBR1700, IBR900, R500-PLTE
$44.9944.99
265 170869-000 TCI Systems
170873-000 170873-000
Extensibility Cable, RS232 DB9 to Screw Lock USB Type A, 400mm; Used with R920 and S700
$75.0075.00
263 170873-000 TCI Systems
170900-015 170900-015
5G Captive Modem Accessory, Outdoor, R2155-5GB (4.1Gbps modem), Global; Used with R1900, R920, IBR1700, E300, E3000
$1,953.991953.99
322 170900-015 TCI Systems
