R980-IOT
R980-IOT

R980-IOT

20 Items

The R980 is the mid range 5G router for Mobile and IOT applications. It is a small footprint 5G ruggedized unit, designed for IOT applications, with higher performance and lower latency for video and other cutting-edge applications. It handles low and mid-band 5G transmission in addition to 4G LTE.

This description is for the IOT models of the R980 routers.

The modem in the R980 is capable of handling carrier slicing and is able to handle Containers software.

The R980 is also eSIM (embedded SIM) ready. eSIM ready is designed for 2 use cases. The first use case is carrier switching. If a router is deployed and for some reason, the carrier needs to be switched, issuing a command via NetCloud Manager to switch carriers. This 1st use case should be available mid 2025. The second use case is zero touch provisioning which is to be implemented in the future.

Routers on this page are designed for the IOT use cases for the R980. These R980 routers come with Ericsson NetCloud software bundled in with the hardware. The NetCloud version is designed for IOT use cases. The R980 router is the lowest price point which is available for 5G IOT use cases.

Most importantly, the R980 does not come with a power supply. The unit comes with a 3meter GPIO cable. A separate power supply, cellular antennas (4) and WiFi antennas (2) are available separately.

R980 Quick Start Guide
R980 Data Sheet
NetCloud Ruggedized IOT Service features

All products ship with license terms depending on the SKU ordered.

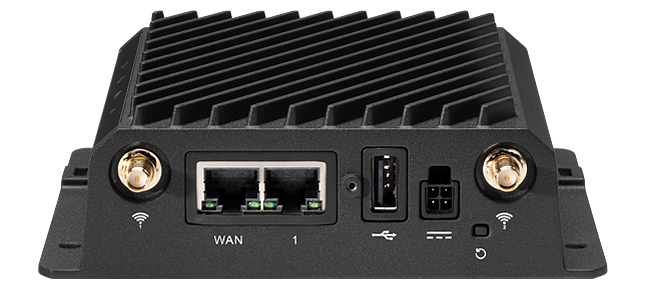

r980-front TC03-R980-5GD-A
3-yr Netcloud Ruggedized IOT Router Essentials Plan, and R980 Router with WiFi (5G modem 4FF SIM slots, and embedded eSIM), no AC power supply or antennas, Global)
$1,260.001260.00
343 TC03-R980-5GD-A TCI Systems
r980-front TC05-R980-5GD-A
5-yr Netcloud Ruggedized IOT Router Essentials Plan, and R980 Router with WiFi (5G modem 4FF SIM slots, and embedded eSIM), no AC power supply or antennas, Global)
$1,470.001470.00
344 TC05-R980-5GD-A TCI Systems
r980-front TCA3-R980-5GD-A
3-yr Netcloud Ruggedized IOT Router Essentials Plan, Advanced Plan, and R980 Router with WiFi (5G modem 4FF SIM slots, and embedded eSIM), no AC power supply or antennas, Global)
$1,575.001575.00
341 TCA3-R980-5GD-A TCI Systems
r980-front TCA5-R980-5GD-A
5-yr Netcloud Ruggedized IOT Router Essentials Plan, Advanced Plan, and R980 Router with WiFi (5G modem 4FF SIM slots, and embedded eSIM), no AC power supply or antennas, Global)
$1,995.001995.00
342 TCA5-R980-5GD-A TCI Systems
170594-002
SIM, Verizon ruggedized 4FF only, for Verizon Retail or VPP accounts
$12.0012.00
351 170594-002 TCI Systems
170623-001-Line-Cord-for-North-America-C8-product-1 170623-001
Line Cord, 125V C7 1.8M (North America Type A); Used with 170869-000
$12.9912.99
371 170623-001 TCI Systems
170635-000 170635-000
Vehicle Auxiliary Power Adapter Cable, 12V, 2X2, 2M
$24.9924.99
267 170635-000 TCI Systems
170716-001 170716-001
Power Supply, 12V Small 2x2 1.5M (North America Type A); Used with IBR1700, IBR900, IBR600C/IBR650C, IBR200, E100, E300, R500-PLTE, R920, S700, S750
$24.9924.99
269 170716-001 TCI Systems
170717-000 170717-000
Power Supply, 12V Small 2x2 1.5M (North America-United Kingdom-Europe-Australia Types A-G-C-I); Used with IBR1700, IBR900, IBR600C/IBR650C, IBR200,E100, E300, R500-PLTE, S700, S750, R920
$24.9924.99
266 170717-000 TCI Systems
170752-001
SIM, ATT 2FF, 4FF Triple punch, ATT Retail, or ATT APEX (Partner Exchange) rate plans, not compatible with ATT IoT/Jasper or FirstNet platform based accounts
$12.0012.00
352 170752-001 TCI Systems
170753-000
SIM, T-Mobile 2FF, 4FF Retail Triple Punch SIM SKU ZZZ260R060
$12.0012.00
354 170753-000 TCI Systems
170801-000 170801-000
Cellular Antenna, Charcoal, 600MHz - 6GHz, SMA, 180mm, Used with E100, E300, E3000, MC400, 1200M-B modems, S700 / S750, R920
$17.9917.99
271 170801-000 TCI Systems
170836-000 170836-000
Wi-Fi Antenna, Charcoal, Dual-band 2.4/5GHz, RPSMA, 194mm, S700,R920
$14.9914.99
272 170836-000 TCI Systems
170864-000 170864-000
GPIO Cable, Small 2x2MPP Black 3M 20AWG; Used with R1900, S700
$19.9919.99
268 170864-000 TCI Systems
170869-000 170869-000
Power Supply, 12V, Small 2x2 C8 (C7 line cord not include), -30C to 70C; Used with R1900, IBR1700, IBR900, R500-PLTE
$44.9944.99
265 170869-000 TCI Systems
170873-000 170873-000
Extensibility Cable, RS232 DB9 to Screw Lock USB Type A, 400mm; Used with R920 and S700
$75.0075.00
263 170873-000 TCI Systems
170900-015 170900-015
5G Captive Modem Accessory, Outdoor, R2155-5GB (4.1Gbps modem), Global; Used with R1900, R920, IBR1700, E300, E3000
$1,953.991953.99
322 170900-015 TCI Systems
170904-000 170904-001
DIN Rail Mounting Bracket, R920/S7x0 /S4x0; Used with R920, S7x0, S4x0
$29.9929.99
338 170904-001 TCI Systems
SIMINSERT01
SIM insertion of 1 SIM per NetCloud package, must be combined with one of the following; 170594-000, 170594-002, 170752-000, 170752-001,170753-000, or 170840-001 or Customer Supplied
$10.0010.00
360 SIMINSERT01 TCI Systems
SIMINSERT02
SIM insertion of 2 SIM per NetCloud package, must be combined with two of the following; 170594-000, 170594-002, 170752-000, 170752-001, 170753-000, or 170840-001 or Customer Supplied
$15.0015.00
361 SIMINSERT02 TCI Systems

There are no licenses or renewals available for purchase on our site as these transactions require specific information about your account. Please contact us via Email or Call 718-888-8898. We will make sure your licenses and renewals orders are placed seamlessly with Ericsson/CradlePoint. Please remember that Ericsson/CradlePoint may add a Reinstatement fee of 10% for any expired licenses.

All sales are final. Ericsson/CradlePoint controls the return policy. Please ensure that you are ordering the correct product for your needs. If you are unsure of whether you are ordering the correct product, please contact us via email at sales@tcisystems.com or Call 718-888-8898. We are more than happy to discuss your project and to ensure that the items you have selected will satisfy your requirements.
